Lotus Offical Part Numbers - Body Panels & Fittings

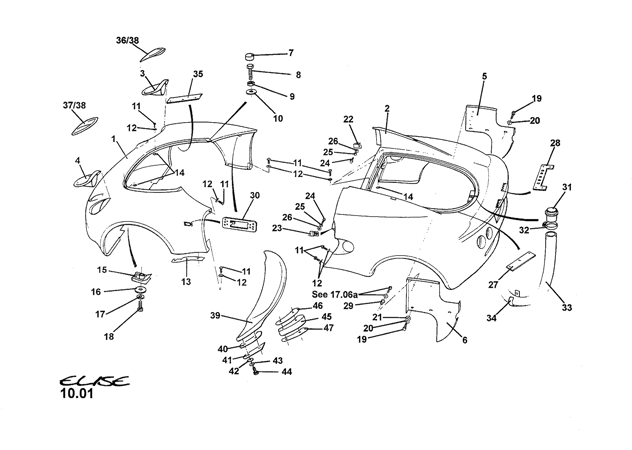

Front & Rear Clamshells

Item	Part Number	Description	Notes	Models	Qty
01	B111B0170J	Front Clamshell	Includes H/lamp bezels, items 3/4		1
01a	B111B0356J	Front Clamshell	Less H/lamp bezels, items 3/4	111S, Sport 135, 160, 190, Type '49'	1
02	A111B0169J	Rear Clamshell, rectangular license plate	Prior to VIN: W 4429 (approx.) plus; 4140, 4315, 4365, 4383. less 4653, includes items 5 & 6	UK/Europe	1
02a	A111B0325J	Rear Clamshell, square license plate	Prior to VIN: W 4429 (approx.) plus; 4140, 4315, 4365, 4383. less 4653, includes items 5 & 6	Australia/Japan	1
02b	B111B0169J	Rear Clamshell/Boot-Box Assy., rectangular license plate	From VIN: W 4429 (approx.) plus; 4140, 4315, 4365, 4383. less 4653	UK/Europe/plus Japan from VIN: X 0304	1
02c	B111B0325J	Rear Clamshell/Boot-Box Assy., square license plate	From VIN: W 4429 (approx.) plus; 4140, 4315, 4365, 4383. less 4653	Australia/plus Japan prior to VIN: X 0304	1
02d	A111B0582J	Rear Clamshell/Boot-Box Assy., rectangular license plate	Also Sport 160, cars with spoiler & spats	111S, UK/Europe/plus Japan from VIN: X 0304	1
02e	A111B0583J	Rear Clamshell/Boot-Box Assy., square license plate	Cars with spoiler & spats	111S, Australia/plus Japan prior to VIN: X 0304	1
03	A111B0330K	Headlamp Bezel, RH			1
04	A111B0329K	Headlamp Bezel, LH			1
05	C111B0110F	Shear Plate, RH	Part of clamshell, items 2/2a		1
06	C111B0109F	Shear Plate, LH	Part of clamshell, items 2/2a		1
07	X046B6113Z	Rubber Buffer			2
08	A075W1041Z	Setscrew, M8x35, hex. hd.			2
09	A075W3026Z	Locknut, M8			2
10	A111W4156F	Washer, flat, M8 x 25 x 1.4			2
11	A111W7115F	Screw, M8 x 25, clamshell fix.			18
12	A111W4156F	Washer, M8x25			18
13	A111U0285K	Shimplate, (plastic), clamshell to sill, 1.6mm			1
13a	A111U0286K	Shimplate, (plastic), clamshell to sill, 2.4mm			1
14	A111U6055F	Washer, neoprene, M8 x 8 x 3			8
15	B100W6372F	Spirenut, M5			3
16	A075W4009Z	Washer, flat, 3/16" x 3/4"			3
17	A075W4030Z	Washer, spring, 3/16"			3
18	A082W5107F	Screw, pozi. M5 x 16, clamshell to front undertray			3
19	A082W5206F	Screw, M6 x 20, clamshell fix.			6
20	A075W4046Z	Washer, shakeproof, M6,			6
21	A075W4015Z	Washer, flat, M6 x 15 x 1.5			6
22	B111B0114F	Bracket, rear clamshell, RH	Part of clamshell assy.		1
23	B111B0113F	Bracket, rear clamshell, LH	Part of clamshell assy.		1
24	A075W1038Z	Setscrew, M8 x 20, hex. hd. rear clamshell fix.			2
25	A075W4036Z	Washer, spring, M8			2
26	A075W4021Z	Washer, flat, M8 x 25 x 1.4			2
27	A111M0021K	Bracket, short, harness to clamshell front and rear			4
28	A111M0048F	Mounting Plate, number plate lamp	Part of clamshell assy.		2
29	A111W6609F	Cage nut, MS, attachment of electrics panel			2
30	A111U0073F	Mounting Plate, indicator repeater lamp	Part of clamshell assy.		2
31	A111B0176F	Drain, engine cover gutter			1
31a	A111U0432	Drain, engine cover gutter		Boot-box clamshell	1
32	A079K6018F	Hose Clip, 16 - 25mm			1
33	A075U6083V	PVC Tube, 5/8", engine cover gutter drain			1
33a	A111U0432V	PVC Tube, 5/8", engine cover gutter drain		Boot-box clamshell	1
34	A075W6320F	'P' Clip, open, drain tube fix.			1
35	A111M0020K	Bracket, long, harness to clamshell, front			2
36	B111U0328F	Headlamp Cover, RH	Fits clamshell, item 1a	111S, Sport 135, 160, 190, Type '49'	1
37	B111U0327F	Headlamp Cover, LH	Fits clamshell, item 1a	111S, Sport 135, 160, 190, Type '49'	1
38	A111U6071V	Adhesive Foam tape, 6x3mm, cover fix		111S, Sport 135, 160, 190, Type '49' (1.8m)	1
39	A111B0553K	Rear Spoiler		111S, Sport 160	1
39a	A111B0568J	Rear Spoiler, GRP composite		MOTORSPORT	1
39b	A111B0569J	Rear Spoiler, part carbon fibre		MOTORSPORT	1
40	A111B0552K	Gasket, rear spoiler to clamshell		111S, MOTORSPORT	2
41	A111B0557F	Spreader Plate		111S, Sport 160, MOTORSPORT	2
42	A075W4020Z	Washer,flat, M8		111S, Sport 160, MOTORSPORT	4
43	A075W4036Z	Washer, spring, MB		111S, Sport 160, MOTORSPORT	4
44	A111W1156F	Setscrew, M8 x 25, hex. hd., spoiler fix.		111S, MOTORSPORT	4
44a	A075W2040Z	Setscrew, M8 x 45, hex. hd., spoiler fix.	For spoiler with plinth	Sport 160	4
45	A111B0703F	Plinth, spoiler mounting, LH		Sport 160	1
45a	A111B0702F	Plinth, spoiler mounting, RH		Sport 160	1
46	A111U0515K	Gasket, plinth to spoiler, LH		Sport 160	1
46a	A111U0514K	Gasket, plinth to spoiler, RH		Sport 160	1
47	A111U0513K	Gasket, plinth to clamshell, LH		Sport 160	1
47a	A111U0512K	Gasket, plinth to clamshell, RH		Sport 160	1
48	A111U6065F	Elbow, gutter drain	Not illustrated	Boot-box clamshell	1

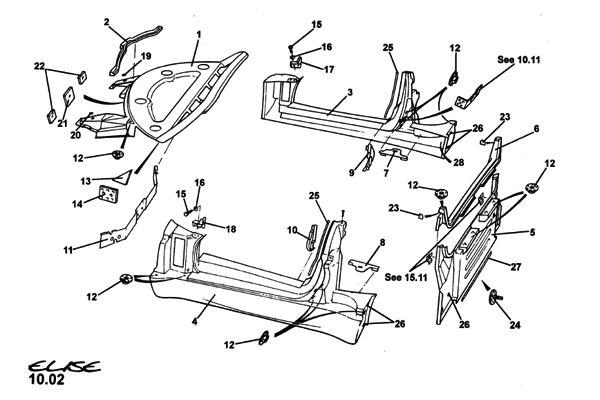

Body, Sill Panels, Windscreen Frame

Item	Part Number	Description	Notes	Models	Qty
01	A111B0173J	Windscreen Frame Assembly	Painted		1
02	A111B0106K	Gutter, windscreen frame			1
03	A111B0168J	Sill Panel, RH		RHD	1
03a	A111B0166J	Sill Panel, RH		LHD	1
04	A111B0167J	Sill Panel, LH		RHD	1
04a	A111B0165J	Sill Panel, LH		LHD	1
05	A111B0172J	Rear bulkhead Assembly	Prior to AC commonisation	Painted	1
05a	A111B0376J	Rear bulkhead Assembly	AC commonisation	Painted	1
06	B111B0006K	Capping Rail, rear bulkhead		Painted	1
07	A111B0150K	Panel, 'B' post closing, RH	Part of sill panel assy.		1
08	A111B0149K	Panel, 'B' post closing, LH	Part of sill panel assy.		1
09	B111B0154K	Baffle, sill panel, RH	Part of sill panel assy.		1
10	B111B0153K	Baffle, sill panel, LH	Part of sill panel assy.		1
11	B111B0026K	Baffle, scuttle to fascia top			1
12	A111W6592F	Captive Nut, M8, big hd.			18
13	A111U0290F	Packing Piece, screen frame			2
14	A111B0180F	Tapping Plate, screen frame			2
15	A111W1155F	Screw, M6 x 20, hex. hd.			4
16	A082W4133F	Washer, flat, M6 x 15 x x1.5			4
17	B111B0112F	Bracket, 'A' post, RH			1
18	B111B0111F	Bracket, 'A' post, LH			1
19	X036B6010Z	Grommet Fitted driver's side only	Fitted driver's side only		1
20	A100B6163F	Blanking Grommet, 12.5mm	Fitted passenger side only		1
21	B111B0009K	Plate, wiper assy, mounting, centre			1
22	B111B0010K	Plate, wiper assy, mounting, outer			2
23	A111B0295F	Backing Plate, capping rail			2
24	A082W6310F	Captive Stud. M6 X 25, bulkhead to heatshield fix.			2
25	A111U6034V	Edge Finisher, 'B' post			2
26	A100B6163F	Blanking Grommet, 12.5mm sill panels & bulkhead			12
27	A111P0214K	Foam Strip, self adhesive, 10 x 3mm, bulkhead/chassis seal			1
28	A111B6000V	Foam Strip, cellular PVC, self adhesive, inner sill panels			As req

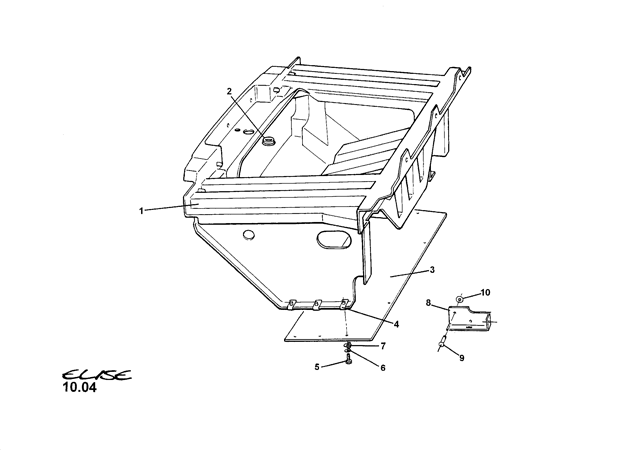

Crash Structure

Item	Part Number	Description	Qty
01	C111B0012J	Front Crash Structure Assembly	1
02	A082B6075F	Grommet, blanking, crash structure	1
03	A111B0011F	Panel, front undershield	1
04	A079W6156F	Spirenut M6, undershield fix	6
05	A075W5089Z	Screw, M6 x 25, pozi., undershieid fix	9
06	A075W4035Z	Washer, spring, M6, undershield fix	9
07	A075W4015Z	Washer, flat, M6 x 15 x 1.5, undershield fix	9
08	A082B6281F	Betaseal 1701, crash structure bonding (not illustrated)	300mm

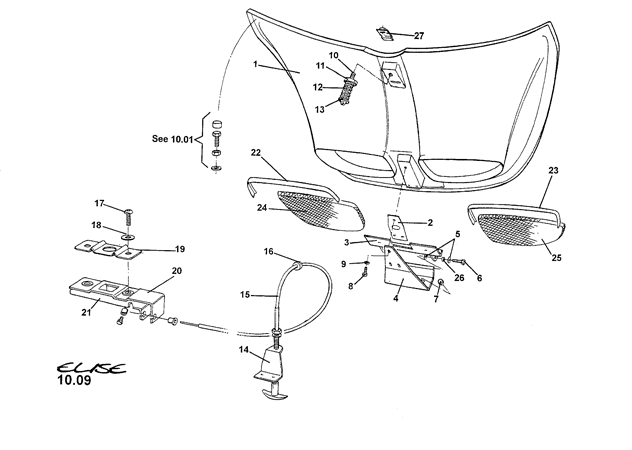

Front Bonnet & Release Mechanism

Item	Part Number	Description	Notes	Qty
01	A111B0076J	Front Bonnet Assembly		1
02	A111U0374F	Shim, 1mm, hinge to bonnet		As req.
02a	A111U0375F	Shim, 4mm, hinge to bonnet		As req.
03	C111U0028F	Bracket Front Hinge	Bonded to front clamshell	1
04	B111U0029F	Hinge Rotor		1
05	A075W4045Z	Washer, shakeproof, M5		2
06	A082W1088F	Setscrew M5 x 16, hex. hd.	Hinge pivot	2
07	A075U6050F	Buffer, hinge upstop		2
08	A111W1150F	Setscrew, M6 x 25, hex. hd.		3
09	A082W4133F	Washer, flat, M6 x 14		3
10	A082U6091F	Striker Pin		1
11	A111U6021F	Nut, striker pin		1
12	A111U6023F	Spring, striker pin		1
13	A111U6022F	Spring Retainer Cup		1
14	A111U0096F	Abutment, release cable		1
15	B111U0031F	Release Cable, front bonnet		1
16	A082L6159F	Grommet		1
17	A075W5095F	Screw, M8 x 20, pan hd.,pozi.		2
18	A075W4048F	Washer, shakeproof, M8		2
19	A100U0035F	Guide Plate		1
20	A082U6087F	Slider Assembly		1
21	A111U6020F	Spring, slider assembly		1
22	A111B0135K	Finisher, outlet grille LH		1
23	A111B0134K	Finisher, outlet grille RH		1
24	A111B0130F	Outlet Grille LH		1
25	A111B0131F	Outlet Grille RH		1
26	A111U6035F	Spacer Hinge Pivot		2

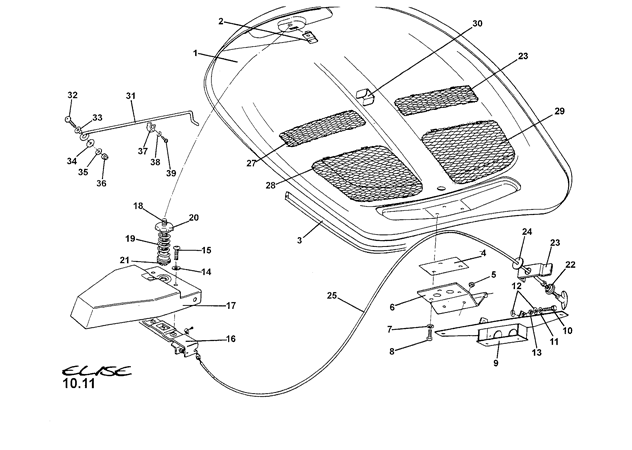

Engine Cover Lid & Release Mechanism

Item	Part Number	Description	Notes	Models	Qty
01	A111B0086J	Engine Cover Assembly, alloy			1
01a	B111B0469J	Engine Cover Assembly, composite		111S	1
02	B111U0032F	Nut Plate, M10, floating			1
03	B111U0195K	Weather Seal, clamshell flange			As req.
04	A111U0372F	Shim, 1mm, hinge to engine cover			As req.
04a	A111U0373F	Shim, 4mm, hinge to engine cover			As req.
05	A075U6050F	Buffer, hinge upstop			2
06	A111U0034F	Hinge Rotor			1
07	A082W4133F	Washer, flat, M6 x 14			3
08	A111W1150F	Setscrew, M6 x 25 hex. hd.			3
09	C111U0033F	Bracket Rear Hinge	Bonded into engine bulkhead		1
10	A082W1088F	Screw, M5 x16, pan hd. pozi.	Hinge pivot		2
11	A075W4045Z	Washer, shakeproof, M5			2
12	A082W4107F	Washer, flat, 3/16 x 3/4			4
13	A111U6035F	Spacer, hinge pivot			2
14	A075W4048Z	Washer, shakeproof, M8			2
15	A075W5095F	Screw, M8 x 20, pan hd. pozi.			2
16	A082U6087F	Slider Assembly			1
17	B111B0158K	Mounting Plinth, latch assy.	Bonded to rear clamshell		1
18	A082U6091F	Striker Pin			1
19	A111U6023F	Spring, striker pin			1
20	A111U6021F	Nut, striker pin			1
21	A111U6022F	Spring Retainer Cup			1
22	A111U0142K	Finisher Ring, release handle to 'B' post			1
23	A111U0141F	Abutment, engine cover release cable			1
24	A111B0085K	Grommet, 5mm ID, release cable			1
25	B111U0036F	Release Cable, engine cover			1
26	B111B0046F	Grille, rear RH	Alloy engine cover		1
26a	A111B0538F	Grille, rear RH	Composite engine cover	111S	1
27	B111B0047F	Grille, rear LH	Alloy engine cover		1
27a	A111B0539F	Grille, rear LH	Composite engine cover	111S	1
28	B111B0045F	Grille, front LH	Alloy engine cover		1
28a	A111B0537F	Grille, front LH	Composite engine cover	111S	1
29	B111B0044F	Grille, front RH	Alloy engine cover		1
29a	A111B0536F	Grille, front RH	Composite engine cover	111S	1
30	A111U0248F	Locating Channel, boot bag lid/prop	Bonded to engine cover (alloy)		1
30a	A111U04373F	Locating Bracket, lid prop	Bonded to engine cover  (alloy)		1
30b	A111U0435F	Locating Bracket, lid prop	Bonded to engine cover (composite)	111S	1

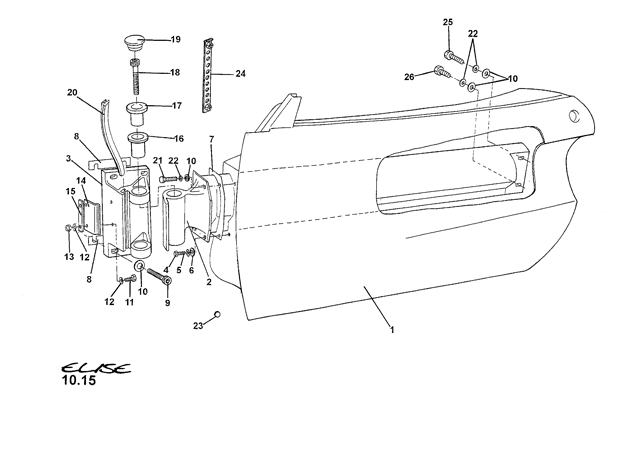

Door Shells, Beams, Hinges

Item	Part Number	Description	Notes	Qty
01	B111B0061J	Door Assembly, LH	Includes front glass guide channel	1
01a	B111B0060J	Door Assembly, RH	Includes front glass guide channel	1
02	C111U0023F	Door Beam, LH		1
02a	C111U0022F	Door Beam, RH		1
03	A111U0055F	Hinge, chassis to door beam		2
04	A075W1030Z	Setscrew, M6 x 20, hex. hd., beam to door fix.		4
05	A075W4046Z	Washer, shakeproof, M6		4
06	A075W4015Z	Washer, flat, M6x 1.5		4
07	B111U0196F	Spacer, door beam	Obsolete 31/01/97	2
08	A111B0316F	Shim, door hinge, 1.0mm		1
08a	A111B0317F	Shim, door hinge, 1.5mm		1
08b	B111B0314F	Shim, door hinge, 2.0mm		1
08c	B111B0315F	Shim, door hinge, 3,0mm		1
09	A089W7052F	Screw, M8 x 30, cap hd.		8
10	A075W4020Z	Washer, flat, M8 x 16.6 x 1.4		18
11	A075W1030Z	Screw, M6 x M20, hex. hd.		4
12	A075W4013Z	Washer, flat, M6		8
13	A075W3009Z	Nut, M6, Nyloc		4
14	C111B0174F	Spring Plate, door check		2
15	C111B0175F	Support Plate, door check spring		2
16	A111U6025F	Bearing, door hinge		4
17	A111U0057F	Bush, door hinge		4
18	A075W7030F	Screw, M10 x 30, cap hd.		4
19	A111U6024F	Dust Cap, door hinge		2
20	B111B0178K	Door Stop Buffer Strip		2
21	A075W1038Z	Setscrew, M8 x 20, hex. hd.	Door beam to door	4
22	A075W4048Z	Washer, shakeproof, M8		10
23	A111J6025F	Buffer, self adhesive, door shut gap		10
24	A111U0056F	Nutplate, door hinges	Fitted in chassis	4
25	A075W2040Z	Bolt, M8 x 45, hex,hd.,beam to rear bracket, upper		2
26	A075W1039Z	Setscrew, M8 x 25, hex. hd.,, beam to rear bracket, lower		2

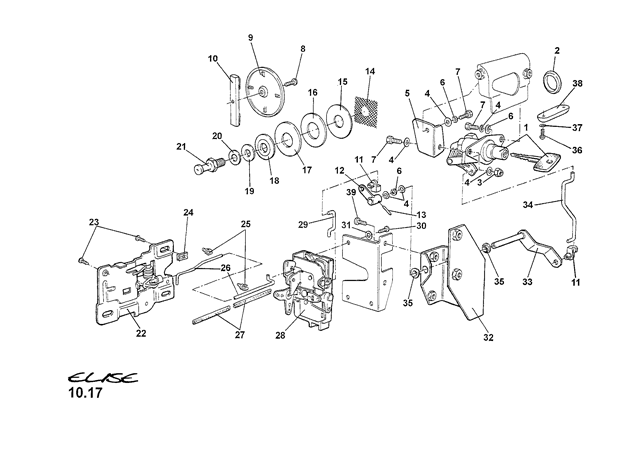

Door Latch Mechanism

Item	Part Number	Description	Qty
01	A111U0128K	Exterior Lock /Release Assembly. RH/LH	1
01a	A111U0326S	Vehicle Lock Set - Not illustrated, comprising; 1 lock, 2 ext. release assys.	1
02	A082B6057F	Blanking Grommet, linkage access hole	2
03	A082B6057F	Nut, nyloc, M6, support brkt fix (part no as above?)	2
04	A075W4013Z	Washer, flat, M6 x 12.1 x 1.4, support brkt fix	12
05	A111U0093F	Support Bracket, release button, LH	1
05a	A111U0092F	Support Bracket, release button, RH	1
06	A075W4035Z	Washer, spring, M6, support brkt. fix.	6
07	A075W1028Z	Setscrew, M6 x 16, support brkt. fix.	6
08	A111W5223F	Screw, M5 x 10, pozi, cover plate fix	2
09	B111U0094K	Cover Plate, mechanism access hole	2
10	A111U0095K	Fixing Strap, cover plate	2
11	A082U6267F	Nylon Clip, linkage retention	4
12	A111U0122F	Lever, door latch release	2
13	A111U6560F	Roll Pin, door latch lever to spindle retention	2
14	A111U0215F	Shim, expanded stainless, door striker attachment	2
15	A111U0220F	Shim, 2mm, door striker pin	2
16	A111U0219F	Shim, 4mm, door striker pin	2
17	A111U0138F	Front Collar, door striker pin	2
18	A111U0137K	Finisher, door striker pin	2
19	A111U0136F	Washer, striker	2
20	A075W4071F	Washer, flat, M12x24 x 1.6, door striker pin	2
21	A111U6003F	Striker Pin, door latch	2
22	A111U6005F	Release, door latch, interior, LH	1
22a	A111U6004F	Release, door latch, interior, RH	1
23	A075W5074Z	Screw, No. 8 x 3/4", pozi., door release fix.	6
24	A075W6016Z	Spire Nut, No 8 captive, door release fix.	4
25	A075J6027Z	Plastic Clip, interior release rod guide	4
26	B111U0133F	Rod, interior release to latch, LH	1
26a	B111U0132F	Rod, interior release to latch, RH	1
27	A082U6067F	Foam Strip, 19 x 3mm	As req.
28	A111U6007F	Latch mechanism, LH	1
28a	A111U6006F	Latch mechanism, RH	1
29	A111U0134F	Rod, latch to lever assy.	2
30	A111W5214F	Screw, pozi, M6, door latch fix.	10
31	A075W4046Z	Washer, shakeproof, M6, door latch fix.	6
32	A111U0069F	Bracket, door beam attachment, LH	1
32a	A111U0068F	Bracket, door beam attachment, RH	1
33	C111U0121F	Spindle/Lever, door latch release, LH	1
33a	C111U0120F	Spindle/Lever, door latch release, RH	1
34	B111U0135F	Rod, latch to release button	2
35	A111U0125F	Bush, lever/spindle assy.	4
36	A100W5133F	Screw, M4 x 16 pozi., exterior door pull fix.	4
37	A082W4099F	Washer, flat, M4 x 9 x 0.8, exterior door pull fix.	4
38	A111B0028F	Door Pull, exterior	2

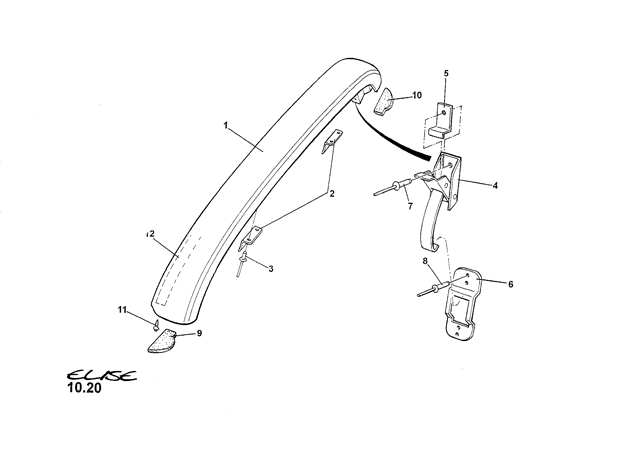

Roll-over Bar Fairing & Fixings

Item	Part Number	Description	Qty
01	A111B0239J	Roll Over Bar Fairing	1
02	B111B0291F	Clip Upper, rear window retaining	2
03	A075W6070Z	Pop Rivet, rear window clip fix.	4
04	A111B6054F	Latch Assembly, cover retention	2
05	B111B0290F	Keeper Plate	2
06	A075W6070Z	Pop Rivet, latch fix.	4
07	A082W6512F	Pop Rivet, keeper fix.	8
08	C111B0247F	Gasket, roll bar cover LH	1
09	C111B0248F	Gasket, roll bar cover RH	1
10	A111W6535F	Buffer, plastic fastener	2
11	A111V0159K	Lining, roll over bar fairing	2

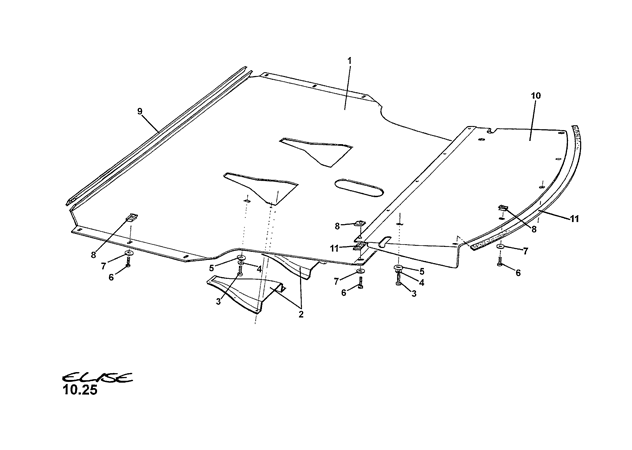

Undertray & Diffuser

Item	Part Number	Description	Notes	Qty
01	B111A0214F	Undertray	Without NACA ducts	1
01a	A111A0220J	Undertray Assembly	With NACA ducts	1
02	A111A0218K	NACA Duct	Part of item 1	2
03	A111W7115F	Screw, M8 x 25, button hd.		4
04	A075W4036Z	Washer, spring, M8		4
05	A111W4156F	Washer, flat, M8 x 25mm x 1.4mm		4
06	A082W5107F	Screw, M5 x 16, hex. hd.		16
07	A082W4098F	Washer, flat, M5 x 25mm x 1.4		16
08	A100W6372F	Spire Nut, M5		16
09	A100B0431V	Foam Strip, self adhesive, 10mm x 6mm		As Req.
10	B111A0215F	Diffuser		1
11	A082U6067F	Foam Strip, self adhesive, 19mm x 3mm		3

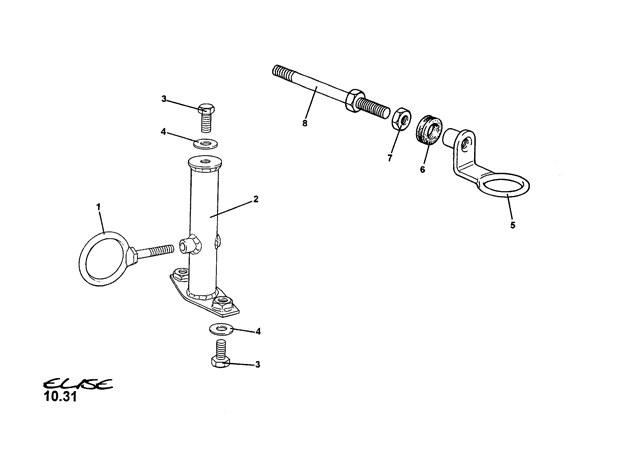

Towing Strut / Hook

Item	Part Number	Description	Notes	Models	Qty
01	A111B0058F	Towing Eye	Prior to 111S intro.		1
01a	B111B0399F	Towing Eye	All cars from 111S intro.	111S	1
02	B111B0057F	Mounting Strut, towing eye	Prior to 111S intro.		1
02a	A111U0456F	Mounting Strut, towing eye	All cars from 111S intro.	111S	1
03	A075W1035Z	Setscrew, M8 x 35, hex. hd., grade 8.8 Zn			3
04	A075W4021Z	Washer, flat, M8 x 1.4 Zn			3
05	A111A0270F	Towing Eye, rear	Fixed to roll over bar reinforcement assy.	MOTOR SPORT	1
06	X036B6167Z	Grommet	Fitted in polycarbonate rear window.	MOTOR SPORT	1
07	A100W3107F	Lock Nut, M12, towing eye fix.		MOTOR SPORT	1
08	A111A0265S	Stud, M12, towing eye to roll-over bar		MOTOR SPORT	1
