Lotus Offical Part Numbers - Seats & Fittings

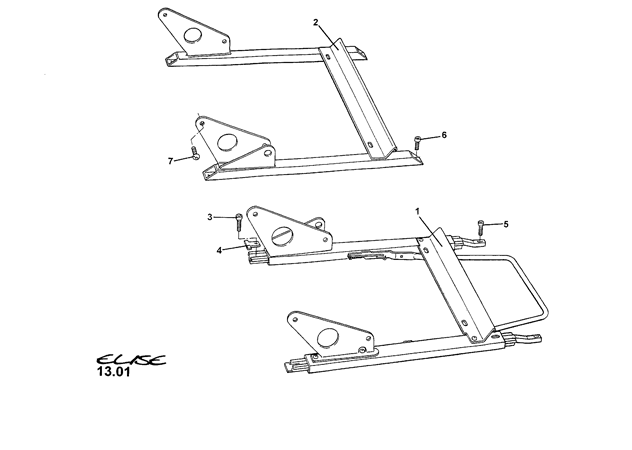

Seat Runners

Item	Qty	Part Number	Description	Notes
01	1	A111V0012J	Seat Runners, driver, RHD
01a	1	A111V0011J	Seat Runners, driver, LHD
02	1	A111V0013F	Seat Mounting Frame, passenger, RHD
02a	1	A111V0014F	Seat Mounting Frame, passenger, LHD
03	2	A111W7130F	Screw, M8 x 20, cap hd.	Runner rear fix.
04	2	B111V0017F	Stop, seat runner
05	2	A111W7115F	Screw, M8 x 25, cap hd.	Runner front fix.
06	4	A111W7125F	Screw, M8 x 16, cap hd.	Mounting frame fix.
07	4	A111W7131F	Screw, M8 x 12, button hd.	Side brackets to seat fix.

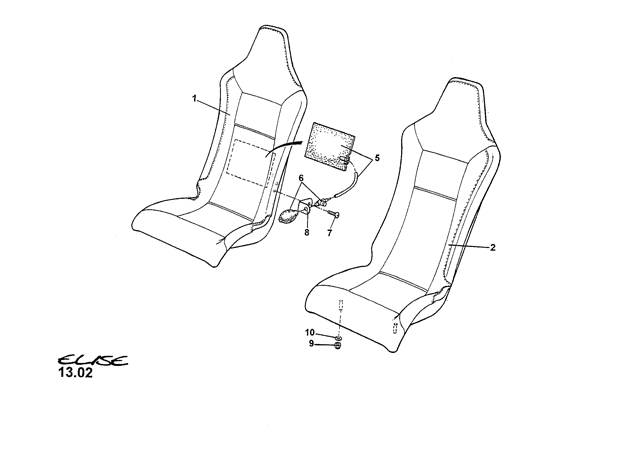

Seat AssemblIES & Lumbar support

Item	Qty	Part Number	Description	Notes	Models
01	1	A111V0094J	Seat Assembly, driver, RHD	Red leather
01a	1	A111V0093J	Seat Assembly, driver, RHD	Blue leather
01b	1	A111V0091J	Seat Assembly, driver, RHD	Raffia leather
01c	1	A111V0090J	Seat Assembly, driver, RHD	Cloth trim
01d	1	A111V0092J	Seat Assembly, driver, RHD	Charcoal leather
01e	1	A111V0246J	Seat Assembly, driver, RHD	Magnolia leather
01f	1	A111V0197J	Seat Assembly, driver, RHD	Black leather
01ff	1	A111V0458J	Seat Assembly, driver, RHD	Black leather	111S
01af	1	A111V0459J	Seat Assembly, driver, LHD	Black leather	111S
01g	1	A111V0171J	Seat Assembly, driver, RHD	Golden tan leather
01h	1	A111V0186J	Seat Assembly, driver, RHD	Begonia leather
01j	1	A111V0181J	Seat Assembly, driver, RHD	Viking blue leather
01k	1	A111V0176J	Seat Assembly, driver, RHD	Racing green leather
01L	1	A111V0200J	Seat Assembly, driver, RHD	Red wing leather
01m	1	A111V0215J	Seat Assembly, driver, RHD	Vinyl & hooding material
01n	1	A111V0122J	Seat Assembly, driver, LHD	Charcoal leather
01o	1	A111V0124J	Seat Assembly, driver, LHD	Red leather
01p	1	A111V0123J	Seat Assembly, driver, LHD	Bobbin Blue leather
01q	1	A111V0121J	Seat Assembly, driver, LHD	Raffia leather
01r	1	A111V0120J	Seat Assembly, driver, LHD	Cloth trim
01s	1	A111V0245J	Seat Assembly, driver, LHD	Magnolia leather
01t	1	A111V0198J	Seat Assembly, driver, LHD	Black leather
01u	1	A111V0172J	Seat Assembly, driver, LHD	Golden tan leather
01v	1	A111V0187J	Seat Assembly, driver, LHD	Begonia leather
01w	1	A111V0182J	Seat Assembly, driver, LHD	Viking blue leather
01x	1	A111V0177J	Seat Assembly, driver, LHD	Racing green
01y	1	A1111V0201J	Seat Assembly, driver, LHD	Red Wing leather
02	1	A111V0004J	Seat Assembly, passenger, RHD	Fawn leather
02a	1	A111V0003J	Seat Assembly, passenger, RHD	Cloth trim
02b	1	A111V0006J	Seat Assembly, passenger, RHD	Bobbin Blue leather
02c	1	A111V0005J	Seat Assembly, passenger, RHD	Charcoal leather
02d	1	A111V0007J	Seat Assembly, passenger, RHD	Red leather
02e	1	A111V0247J	Seat Assembly, passenger, RHD	Magnolia leather
02f	1	A111V0170J	Seat Assembly, passenger, RHD	Golden tan leather
02g	1	A111V0185J	Seat Assembly, passenger, RHD	Begonia leather
02h	1	A111V0180J	Seat Assembly, passenger, RHD	Viking blue leather
02i	1	A111V0175J	Seat Assembly, passenger, RHD	Racing green
02j	1	A111V0199J	Seat Assembly, passenger, RHD	Red wing leather
02k	1	A111V0217J	Seat Assembly, passenger, RHD	Vinyl & hooding material
02LL	1	A111V0457J	Seat Assembly, passenger, RHD	Black leather	111S
02L	1	A111V0196J	Seat Assembly, passenger, RHD	Black leather
02aL	1	A111V0491J	Seat Assembly, passenger, LHD	Black leather	111S
02m	1	A111V0480J	Seat Assembly, passenger, LHD	Red wing leather
02n	1	A111V0483J	Seat Assembly, passenger, LHD	Racing green leather
02o	1	A111V0499J	Seat Assembly, passenger, LHD	Charcoal leather
02p	1	A111V0501J	Seat Assembly, passenger, LHD	Red leather (early)
02q	1	A111V0500J	Seat Assembly, passenger, LHD	Blue leather
02r	1	A111V0499J	Seat Assembly, passenger, LHD	Fawn leather
02s	1	A111V0497J	Seat Assembly, passenger, LHD	Cloth trim
02t	1	A111V0486J	Seat Assembly, passenger, LHD	Magnolia leather
02u	1	A111V0481J	Seat Assembly, passenger, LHD	Black leather
02v	1	A111V0482J	Seat Assembly, passenger, LHD	Golden tan leather
02w	1	A111V0185J	Seat assembly, passenger, LHD	Begonia leather
02x	1	A111V0184J	Seat assembly, passenger, LHD	Viking blue leather
03	1	B111V0117F	Inflatable Lumbar Support, driver	Includes tube, driver only
04	1	A089V6142F	Pump & Valve, lumbar support
05	4	A111W6532F	Screw, M8 x 25, big hd.
06	1	B111V0127F	Bracket, Pump & Valve Assy.
07	4	A075W3010Z	NylocNut, M8
08	4	A075W4020Z	Washer fiat, M8 x 17 x 1.6mm

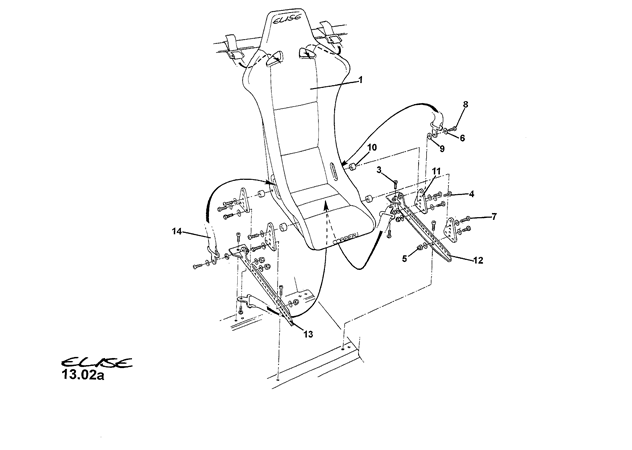

Competition Style Seat, Fixings, Harness - a

Item	Qty	Part Number	Description	Notes/Models
01	1	A111V6034S	Drivers Seat, Corbeau	MOTOR SPORT
02	1	A111V0297J	Fitting kit	Comprising: items 03-13
03	4	A111W7125F	Screw, brackets to floor fixing
04	8	A075W1038Z	Bolt, sideplate to runner fixings
05	6	A907E6284F	Nyloc nut, sideplate to runner
06	20	A075W4020Z	Washer, flat
07	4	A082W7050F	Setscrew, button head, sideplate to seat & runner
08	2	A082W7063F	Setscrew, button head, seat belt to runner
09	2	A079W4019F	Washer, harness to seat side
10	4	A111V0294F	Spacer, sideplate mtg
11	4	A111V0293F	Sideplate, seat to runner
12	1	B111V0265F	Seat Mounting Bracket, LH
13	1	B111V0266F	Seat Mounting Bracket, RH
14	1	A111U0378S	Six Point Harness	MOTOR SPORT
15	1	LSL365	Fitting Instructions	Not illustrated, supplied with seat/harness fitting kits

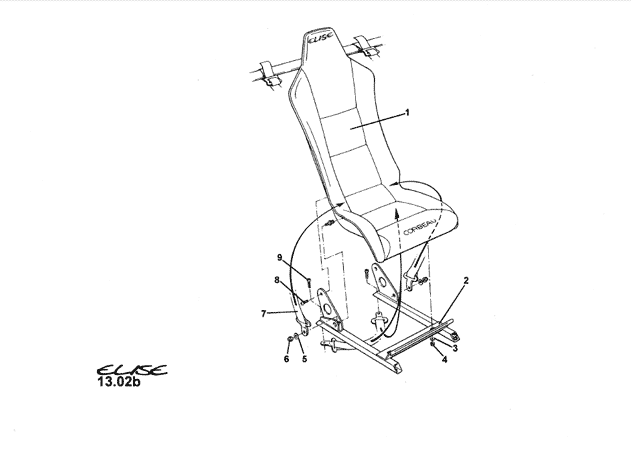

Competition Style Seat, Fixings, Harness - b

Item	Qty	Part Number	Description	Notes/Models
01	1	A111V6035S	Competition Style Seat
02	1	A111V0014F	Seat mounting, passenger, fixed, RHD	standard part
02a	1	A111V0013F	Seat mounting, passenger, fixed, LHD
03	2	A075W4020Z	Washer flat, M8, 17 x 1.6mm, seat to mounting fix	standard part
04	2	A075W3010Z	Nyloc nut, M8, seat to mounting fix
06	2	A075W4020Z	Washer, harness to seat mounting fix	(as 3?)
07	2	A907E6284F	Nyloc Nut, harness to seat mounting fix
08	1	A111U0378S	Six Point Harness	MOTOR SPORT
09	2	A111W7131F	Screw, M8 x 12mm, seat to fixed mounting	standard part
10	4	A111W7125F	Screw, M8 x 16mm, seat mounting to floor fixing	standard part
15	1	LSL365	Fitting Instructions	Not illustrated, supplied with seat/harness fitting kits

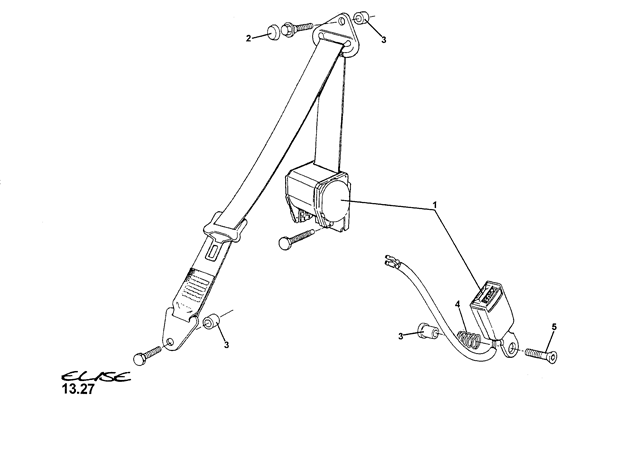

Seat Belts

Item	Qty	Part Number	Description	Notes
01	2	A111U0001F	Seat Belt Assembly	Includes fixings, Items 2,3,4,5.
02	2	A111U6015H	Cap, black, top fixing bolt
03	2	A111U0017F	Spacer
04	2	A111U6016F	Spring, buckle to seat
05	2	B111U0016F	Bolt, special, buckle to seat fix.
06	2	A111U0378S	Six Point Harness Kit	Also see 1202a/b Not illustrated - MOTOR SPORT
