Lotus Offical Part Numbers - Window Glass & Fixings

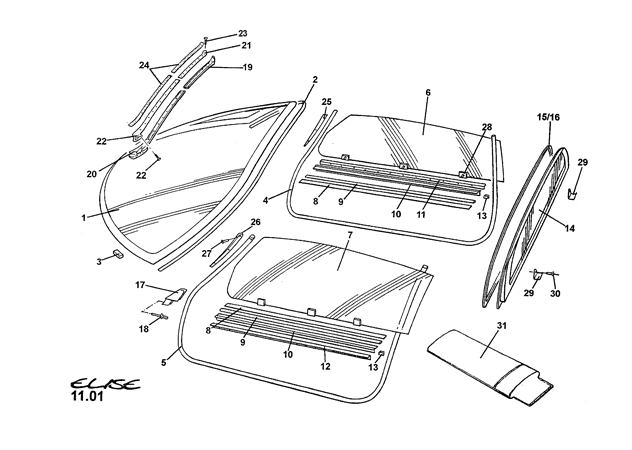

Glazing & Seals
| Item | Part Number | Description | Notes | Models | Qty |
|---|---|---|---|---|---|
| 01 | B111B0037F | Windscreen | 1 | ||
| 02 | B111U0088F | Windscreen Finisher | 1 | ||
| 03 | A075U0588Z | Spacer, windscreen alignment | 7 | ||
| 04 | D111U0160F | Primary Door Seal Assembly, RH | 1 | ||
| 05 | D111U0161F | Primary Door Seal Assembly, LH | 1 | ||
| 06 | C111B0038F | Door Glass Assembly, RH | Includes stud carriers, item 27 | 1 | |
| 07 | C111B0039F | Door Glass Assembly, LH | Includes stud carriers, item 27 | 1 | |
| 08 | B111U0149F | Carrier, inner waist seal | Bonded into door assembly | 2 | |
| 09 | A111U6033V | Seal, door waist inner | 2 | ||
| 10 | A111U0148F | Retainer door waist, outer seal | Bonded into door assembly | 2 | |
| 11 | A111U0200F | Seal, door waist, outer, RH | 1 | ||
| 12 | A111U0201F | Seal, door waist, outer, LH | 1 | ||
| 13 | A111W6568F | Edge Clip | Outer seal attachment | 18 | |
| 14 | C111B0187F | Rear Window, glass | Prior to VIN: X 5558 | 1 | |
| 14a | A111B0562J | Rear Window/Housing Assy, glass | Non reflective | From VIN: X 5558 | 1 |
| 14b | A111B0368S | Rear Window, polycarbonate | Light weight | MOTOR SPORT | 1 |
| 15 | B111B0236K | Seal, rear window | 1 | ||
| 15a | A111U6073V | Seal, rear window | For non-reflective window assy. | 1 | |
| 16 | A111U0119F | Door Cheater Seal | 2 | ||
| 17 | A079W6195F | Pop Rivet, cheater seal fix. | 2 | ||
| 18 | A111B0210K | Moulded Plastic Carrier, RH | 1 | ||
| 19 | A111B0209K | Moulded Plastic Carrier, LH | 1 | ||
| 20 | C111B0220F | Tongue Strip, RH | 1 | ||
| 21 | C111B0221F | Tongue Strip, LH | 1 | ||
| 22 | A075W5026Z | Screw, No.6 x 3/4", csk. pozi., tongue strip fixing | Black finish | 12 | |
| 23 | A111B6044V | Gripper Strip | Cut to size from 25M roll | 1M | |
| 24 | B111B0286F | Seal Support, foam, RH | Door seal to A' post | 1 | |
| 24a | A111B0359K | Seal Support, plastic, RH | 1 | ||
| 25 | B111B0285F | Seal Support, foam, LH | Door seal to A' post | 1 | |
| 25a | A111B0360K | Seal Support, plastic, LH | 1 | ||
| 26 | A075W5026Z | Screw, No.6 x 3/4", csk. pozi., seal support to 'A' post | Black finish | 6 | |
| 27 | A111U0341S | Stud carrier | Bonded to glass | 6 | |
| 28 | A111V0157J | Storage Bag, rear window | 1 | ||
| 29 | A000Z0043F | Permabond Initiator INI 5 | Not illustrated, refer to section BN Elise Service Notes | As req. | |
| 30 | B089B6125V | Permabond Flexon F246 | Not illustrated, refer to section BN Elise Service Notes | As req. |
Door Window Lift mechanism
| Item | Part Number | Description | Models | Qty |
|---|---|---|---|---|
| 01 | C111U0082K | Window Regulator, RH | 1 | |
| 01a | C111U0083K | Window Regulator, LH | 1 | |
| 02 | A111U6008F | Window Winder Handle, plastic | 2 | |
| 02a | A111U0486F | Window Winder Handle, alloy | 111S | 2 |
| 02b | A111U6010F | Cap, window regulator handle | 2 | |
| 03 | A082W4109F | Spacer, window regulator handle | 4 | |
| 04 | A111U6009F | Screw, regulator handle fix, (incl. retaining clip) | 2 | |
| 05 | B111U0084F | Eccentric Stop | 2 | |
| 05a | A111U0251F | Mesh Washer, eccentric stop | 1 | |
| 06 | A100W1055F | Setscrew, eccentric stop fix. | 2 | |
| 07 | A075W4046Z | Shakeproof Washer | 2 | |
| 08 | A075W1028Z | Setscrew, regulator fix | 2 | |
| 09 | A075W4035Z | Washer, spring M6 | 6 | |
| 10 | B0S2W4018F | Washer, flat M6 | 6 | |
| 11 | A075W4016Z | Washer, spacer | 2 | |
| 12 | A075W1027Z | Setscrew M6, regulator fix | 4 | |
| 13 | A111U6011F | Guide Channel, window regulator | 1 | |
| 14 | A075W4000Z | Washer, flat M5 | 4 | |
| 15 | A075W3113F | Nyloc Nut, M5 | 4 | |
| 16 | C111U0040F | Channel Assembly, door glass, rear, RH | 1 | |
| 16a | C111U0039F | Channel Assembly, door glass, rear, LH | 1 | |
| 17 | A100W6372F | Spirenut, M5, channel assy., fix | 8 | |
| 18 | A075W4009Z | Washer, flat, 3/16 x 3/4 x16 SWG | 8 | |
| 19 | A0754045Z | Washer, shakeproof, M5 | 4 | |
| 20 | A082W5107F | Screw, M5 x 16, pozi., channel assy., fix. | 8 | |
| 21 | A111U0025F | Guide Channel, door glass assy. | 1 | |
| 22 | A075W4020Z | Washer, flat, M8 x 16.6 x 1.4 | 8 | |
| 23 | A075W4048Z | Washer, shakeproof, M8 Deleted - RIB Loctite243, A918E6027V |
2 | |
| 24 | A075W1043Z | Setscrew, M8 x 45, channel assy., fix. | 2 | |
| 25 | A907E6285F | Locknut, guide channel fix. | 6 | |
| 26 | B111U0054K | Silent Channel, front | 2 | |
| 27 | B111U0053K | Silent Channel, rear | 2 | |
| 28 | B111U0259F | Bracket, upstop, LH | 2 | |
| 29 | B111U0260F | Bracket, upstop, RH | 2 | |
| 30 | A111W1155F | Screw, M6 x 20, hex. hd.,upstop bracket fix. | 8 | |
| 31 | A075W4035Z | Washer, spring, M6 | 8 | |
| 32 | A075W4015Z | Washer, flat M6 x 15 x 1.5 | 8 | |
| 33 | A111U0325F | Shim, 1.5mm, spacer upstop bracket | As req. | |
| 34 | A111U0268F | Buffer, guide channel upstop | 4 | |
| B111U0292F | Nut Plate - Glass stop Bracket to Door Beam - Not illustrated | 4 |
